- 15KV High voltage ceramic capacitors

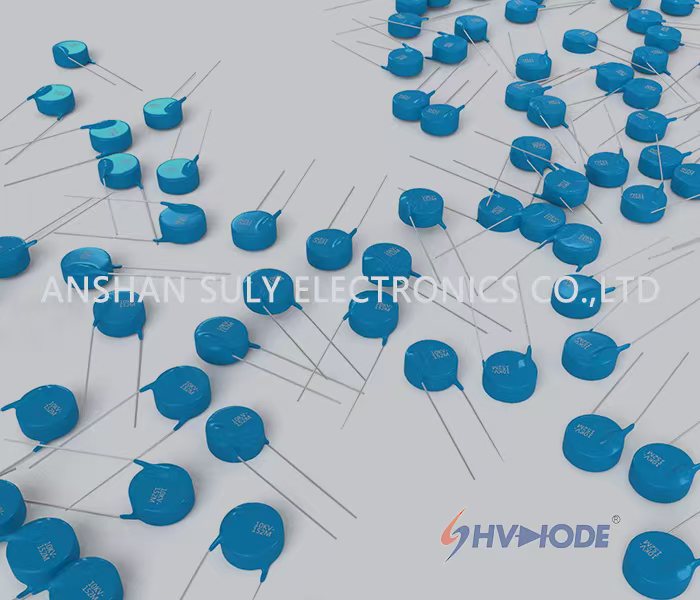

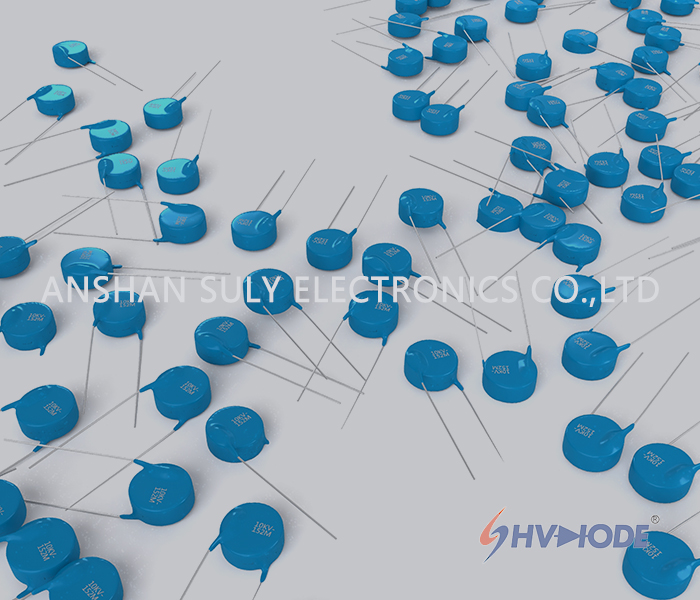

15KV High voltage ceramic capacitors
Brand :HVDIODE
Product origin :CHINA
Delivery time :5 TO 10 DAYS
Supply capacity :50KK
⑴Rated Voltage：DC15KV
⑵Nominal Capacitance Range:： 900PF~1100PF
Test Conditions:
(a) Measurement Voltage: 23 kV
(b) Frequency: 1 kHz
(c) Temperature: 25°C ±2°C
(d) Humidity: 70% RH
Inspection Method: Use rubber gloves to avoid thermal influence on capacitance accuracy.
⑶Capacitance Tolerance： k±10%
⑷Dissipation Factor (tg)：≤ 0.5%
⑸Insulation Resistance （IR）≥ 100000MΩmin
⑹Withstand Voltage Test：DC 1.5× rated voltage, no breakdown or arcing.
>
>
>
>
2CLM Low-frequency High Voltage Pulsed Diodes
2CLM Low-frequency High Voltage Pulsed Diodes
Brand:HVDIODE
Product origin:CHINA
Delivery time:5 TO 60 DAYS
Supply capacity:50KK
1. Adopting international latest technology for the production of die chips
2. Low leakage current, low power, high reliability.
3. Excellent impact resistance for instantaneous high current.
4. Reverse avalanche breakdown.
5. Working temperature-40 oC. ~+175 oC.
6. Various sizes or customized
7. High voltage rectifier, isolation and protective effect in circuits.
8. Environmental-friendly technology and complying with international standards.
Induction Coil High Voltage Power Supply, High Voltage Electrical Supply
Product Overview:
Our high voltage diode products are composed of multiple miniature P-N junction chips in series, Induction Coil High Voltage Power Supply which are the high voltage resistance layered modular constructions.
Product Features: High reverse breakdown voltage, low forward voltage drop, high current resistance, ultrafast recovery time, Induction Coil High Voltage Power Supply low leakage current, fitting into harsh working condition and so on.
Technology application for these series products: high voltage resistance and heat resistance structural designs; special cutting technique for die chips; adopting new and advanced high heat resistance protective glue passivation to ensure the miniature plastic package humidity resistance reach to the international advanced level; Induction Coil High Voltage Power Supply adopting new molding compound for modeling package to ensure humidity and heat resistance of silicon stacks reach to international advanced level.
Applications:
Electrostatic precipitation, electrostatic spraying, electrostatic flocking, negative-ion generator, high voltage generator, High Voltage Electrical Supply medical X-ray testing, laser power supply, high voltage test, high frequency doubler rectifier circuit and other high voltage power supply circuits.
| Type | Vrrm (KV) | IO (mA) | IFSM (A) | VFM (V) | IR(μA) | TRR(nS) | Tstg (℃) | Size(mm) |
2CLM8KV/1000mA | 8 | 1000 | 80 | 9 | 2.0 | -- | -40 TO 130 | Φ9×100 M3/M4 |
| 2CLM10KV/1000mA | 10 | 1000 | 80 | 11 | 2.0 | -- | -40 TO 130 | Φ9×100 M3/M4 |
| 2CLM15KV/500mA | 15 | 500 | 30 | 13 | 2.0 | -- | -40 TO 130 | Φ9×60 M3/M4 |
| 2CLM30KV/500mA | 30 | 500 | 30 | 26 | 2.0 | -- | -40 TO 130 | Φ9×80 M3/M4 |
| 2CLM40KV/500mA | 40 | 500 | 30 | 42 | 2.0 | -- | -40 TO 130 | Φ9×80 M3/M4 |
| 2CLM45KV/500mA | 45 | 500 | 30 | 50 | 2.0 | -- | -40 TO 130 | Φ9×80 M3/M4 |
| 2CLM50KV/200mA | 50 | 200 | 20 | 60 | 2.0 | -- | -40 TO 130 | Φ9×100 M3/M4 |
| 2CLM60KV/200mA | 60 | 200 | 20 | 72 | 2.0 | -- | -40 TO 130 | Φ9×100 M3/M4 |
| 2CLM70KV/100mA | 70 | 100 | 10 | 85 | 2.0 | -- | -40 TO 130 | Φ9×100 M3/M4 |
| 2CLM80KV/100mA | 80 | 100 | 10 | 96 | 2.0 | -- | -40 TO 130 | Φ9×120 M3/M4 |
| 2CLM100KV/100mA | 100 | 100 | 10 | 125 | 2.0 | -- | -40 TO 130 | Φ9×120 M3/M4 |
Anshan Suly Electronics Co., Ltd. is a professional high technology enterprise that focuses on R&D, High Voltage Electrical Supply design and production of high voltage rectifier components for various fields.
Our main products are high voltage silicon stacks, industrial special silicon stacks, high voltage silicon rectifier diodes, High Voltage Electrical Supply high voltage silicon stacks of microwave oven, high voltage silicon rectifier bridges, high voltage rectifier components, high voltage modules and so on.
HVDIODE products are widely used in medical equipments, electrostatic precipitation, spraying, high frequency thermal bonding, oil dehydrating, high voltage detection, plasma injection, ion acceleration, High Voltage Electrical Supply electron beam welding, electron microscopy, air purification, vacuum coating, ultrasonic cleaning, high energy ignition, X-ray machine industrial microwave, radar modulation, laser equipments, all kinds of power supply and other electronic equipments.
HVDIODE products sell well throughout domestic and overseas.
